Smal-size Hammer

 Small-sized hand-held Rock Drills are suitable for downward drilling. And it is well balanced and do not react much, the workers can drill efficiently. Widely used for breaking rocks in quarries, road constructions and o ther cifil engineering work....





Specifications

Model	Unit	RD160 TY16	RD240 TY24C	PD38
Overall length	mm	559 / 580	661	424
Weight of drill	kg	17	24	5.9
Number of blows	bpm	1950	1800	3400
Air consumption	m3/min at 5 bar	2.1	2.7	0.85
Shank size	mm	H22 X 83, 108	H22, H25 X 108	H19, H14.6 X 88
Cylinder diameter	mm	60	66.7	38
Piston stroke	m/m	55	68	32
Type of blow		Air	Air / Wet	Air
Support Leg		X	X	X

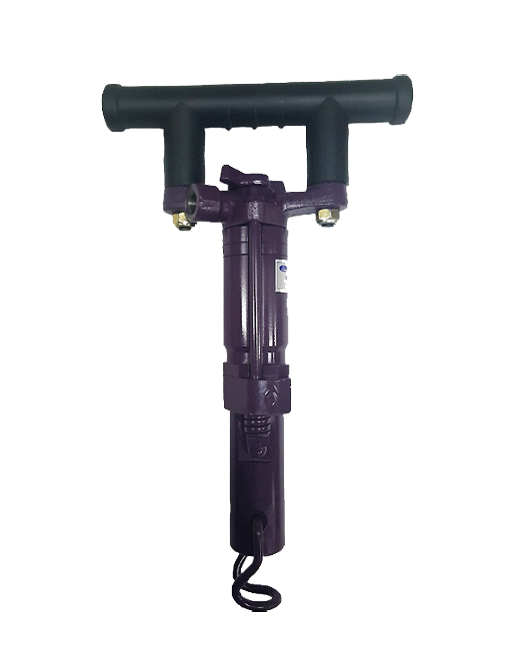

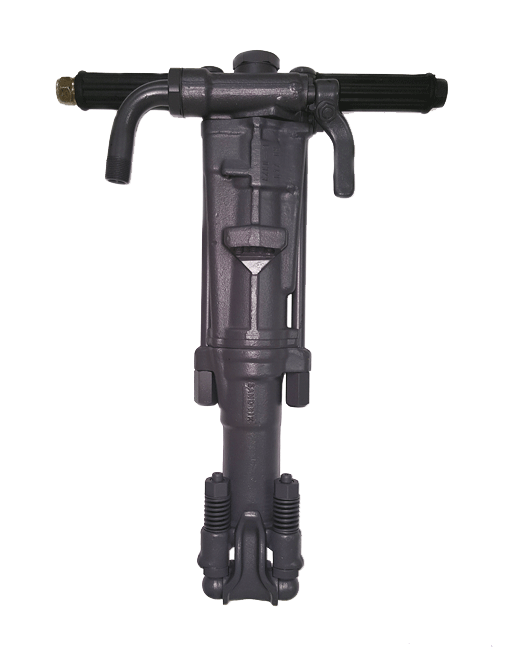

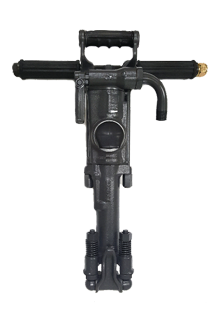

RD160                                             RD240                                             PD38
