This medium and large-sized Rock Drills are for horizontal drilling and highly suitable for mining, tunneling, construction, and civil engineering, etc. All those model are light, has great performance and therefore easy to use and maintain. We always have spare parts in stock for immediate replacements for our local market. So there is no problem at all if you order in small quantities.
Specifications
Model |
Unit | 112D | 22D | 322D | PD90L |
| Overall length |
mm | 485 | 612 | 705 | 670 |
| Weight of drill |
kg | 13.6 | 26.9 | 26.9 | 28.6 |
| Number of blows |
bpm | 2400 | 1850 | 1850 | 2500 |
| Air consumption |
m3/min at 5 bar |
2.1 | 3.5/2.8 | 3.2/2.8 | 4.5 |
| Shank size |
mm | H19/22 X 83 | H22/25 X 108 | H22/25 X 108 | H22 X 108 |
| Cylinder diameter |
mm | 54 | 70 | 70 | 90 |
| Piston stroke |
m/m | 45 | 68 | 68 | 50 |
| Type of blow | Air | Air / Wet | Air / Wet | Air / Wet | |
| Support Leg | X | X | LB56 / LB65 | LC77 | |
|

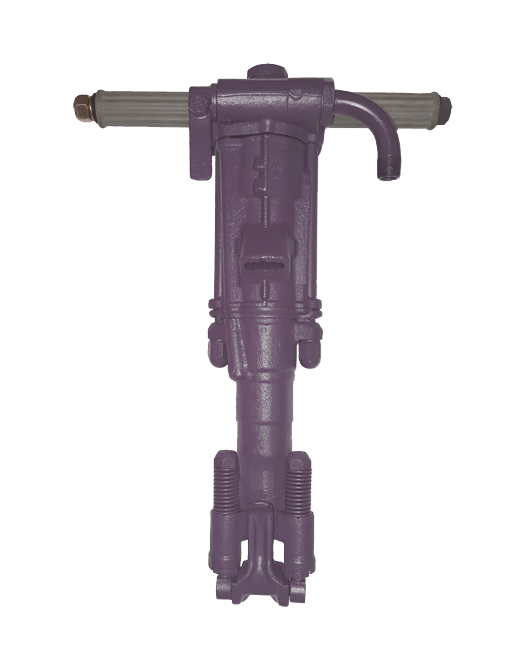

112D 22D 322D |
|||||
Support Leg
Model |
Unit | LB56 | LB65 | LC77 |
| Overall length |
mm | 1388 | 1530 | 1830 |
| Extension length |
mm | 990 | 1000 | 1300 |
| Maximum length |
mm | 2378 | 2530 | 3130 |
| Weight of support leg |
kg | 13 | 13.5 | 18.7 |
