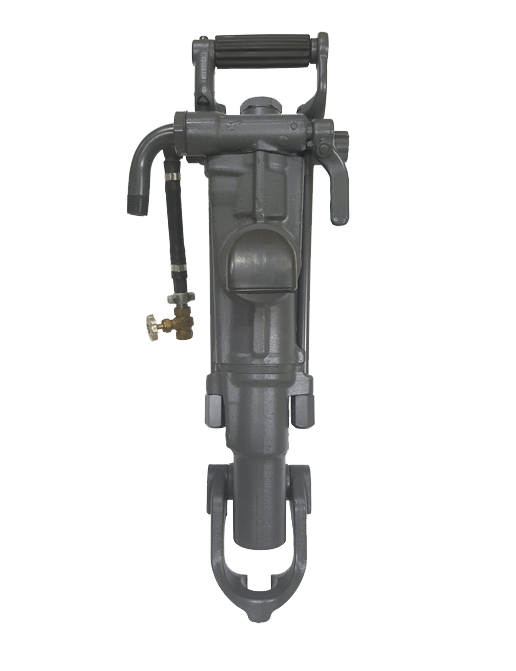

RD285 Leg Drill & Support Leg
Medium and large-sized Rock Drill for long hole drilling, downward drilling, horizontal drilling, mining, tunneling, dam construction and breaking rocks, etc....
pin_drop
Overseas Sales Office Location
Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730
Mon - Fri, 8:30-5:30pm
Sat, 8:30 - 12:00
Specifications
Model |
Unit | RD285 TY280 |
| Overall length |
mm | 615 |
| Weight of drill |
kg | 27 |
| Number of blows |
bpm | 2300 |
| Air consumption |
m3/min at 5 bar |
3.5 |
| Shank size |
mm | H22 X 108 |
| Cylinder diameter |
mm | 85 |
| Piston stroke |
m/m | 60 |
| Type of blow | Air / Wet | |
| Support Leg | RL85 XSL-40 |
|
Support Leg
Model |
Unit | RL85 XSL-40 |
| Overall length |
mm | 1750 |
| Extension length |
mm | 1210 |
| Feed length(max) |
mm | 2960 |
| Weight of support leg |
kg | 15.2 |
| Feed Cylinder diameter |
mm | 62 |
