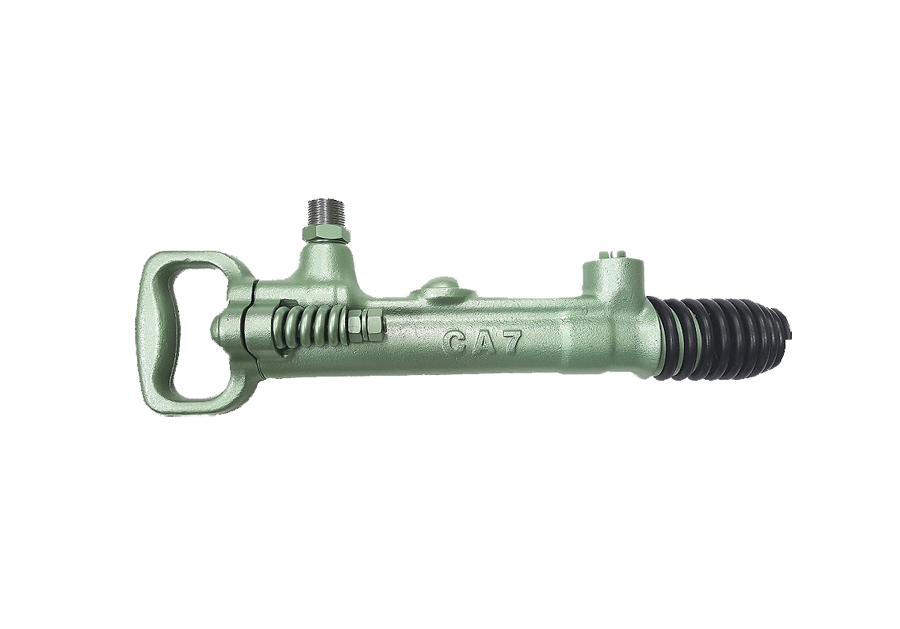

Pick Hammer
Light and powerful. Maintenence and repairing is easy due to light weight and easy handling. Suitable for concrete and asphalt destroying and public works....
pin_drop
Overseas Sales Office Location
Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730
Mon - Fri, 8:30-5:30pm
Sat, 8:30 - 12:00
Specifications
Model |
Unit | CA7 |
| Weight | kg | 7.0 |
| Overall length |
mm | 470 |
| Piston diameter |
mm | 35 |
| Piston Stroke |
m/m | 125 |
| Number of blows |
bpm | 1300 |
| Air consumption |
N.T.P m3/min at 5 bar |
1.2 |
| Shank Size |
mm | 26 X 80 |
| Inner diameter of air hose |
m/m | 19 |
| Hose adapter thread | R 3/4 | |
| Applicable standards | JIS B 7762-5 | |
| * Operating air pressure : 588 kPa (6.0 kgf/cm2) | ||
* Do not hesitate to contact us if you have any troubles like the aforementioned symptoms.
