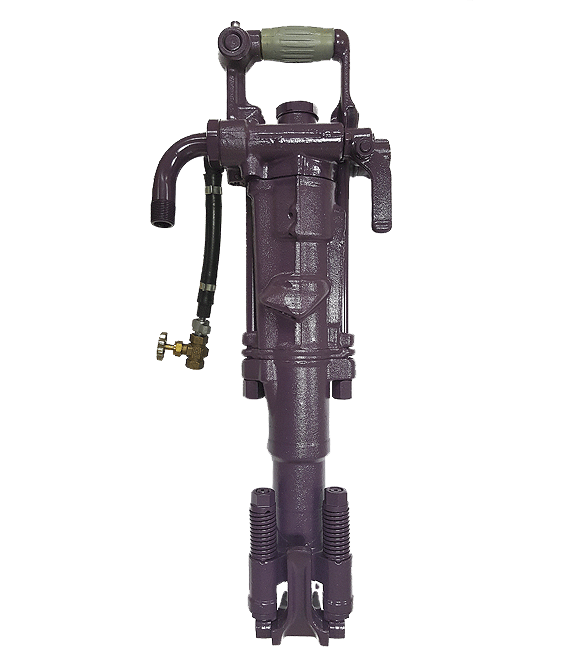

322D Leg Drill & Support Leg
Medium and large-sized Rock Drill for horizontal drilling, mining, tunnelling, dam construction, etc....
pin_drop
Overseas Sales Office Location
Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730
Mon - Fri, 8:30-5:30pm
Sat, 8:30 - 12:00
Specifications
Model |
Unit | 322D |
| Overall length |
mm | 705 |
| Weight of drill |
kg | 26.9 |
| Number of blows |
bpm | 1850 |
| Air consumption |
m3/min at 5 bar |
3.2 / 2.8 |
| Shank size |
mm | H22/25 X 108 |
| Cylinder diameter |
mm | 70 |
| Piston stroke |
m/m | 68 |
| Type of blow | Air / Wet | |
| Support Leg | LB56 / LB65 | |
Support Leg
Model |
Unit | LB56 | LB65 |
| Overall length |
mm | 1388 | 1530 |
| Extension length |
mm | 990 | 1000 |
| Maximum length |
mm | 2378 | 2530 |
| Weight of support leg |
kg | 13 | 13.5 |
