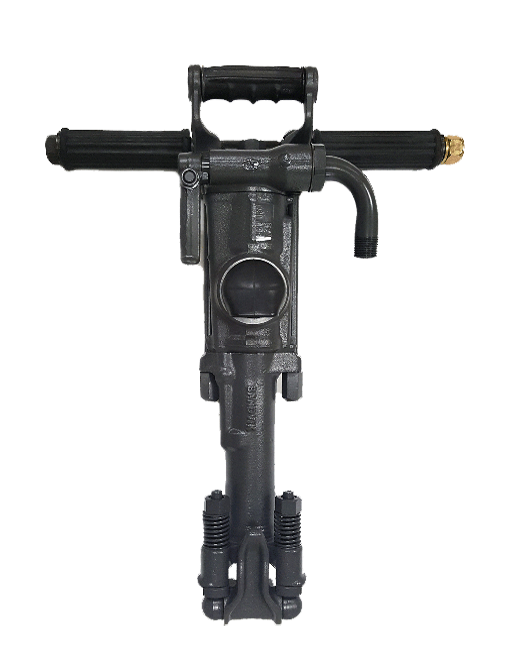

RD160 Hand-held Rock Drill
Light-weight hand-held Rock Drill is easy to handle and suitable for downward drilling, breaking rocks in quarries, road constructions and other civil engineering work....
pin_drop
Overseas Sales Office Location
Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730
Mon - Fri, 8:30-5:30pm
Sat, 8:30 - 12:00
Specifications
Model |
Unit | RD160 TY16 |
| Overall length |
mm | 559/580 |
| Weight of drill |
kg | 17 |
| Number of blows |
bpm | 1950 |
| Air consumption |
m3/min at 5 bar |
2.1 |
| Shank size |
mm | H22 X 83, 108 |
| Cylinder diameter |
mm | 60 |
| Piston stroke |
m/m | 55 |
| Type of blow | Air | |
| Support Leg | X | |
