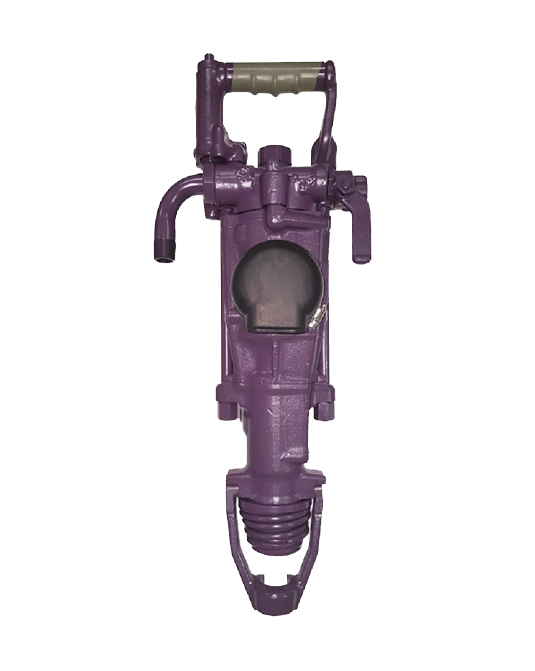

PD90L Leg Drill & Support Leg
Medium and large-sized Rock Drills for horizontal drilling, mining, tunnelling, dam construction, etc....
pin_drop
Overseas Sales Office Location
Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730
Mon - Fri, 8:30-5:30pm
Sat, 8:30 - 12:00
Specifications
Model |
Unit | PD90L |
| Overall length |
mm | 670 |
| Weight of drill |
kg | 28.6 |
| Number of blows |
bpm | 2500 |
| Air consumption |
m3/min at 5 bar |
4.5 |
| Shank size |
mm | H22 X 108 |
| Cylinder diameter |
mm | 90 |
| Piston stroke |
m/m | 50 |
| Type of blow | Air / Wet | |
| Support Leg | LC77 | |
Support Leg
Model |
Unit | LC77 |
| Overall length |
mm | 1830 |
| Extension length |
mm | 1300 |
| Maximum length |
mm | 3130 |
| Weight of support leg |
kg | 18.7 |
